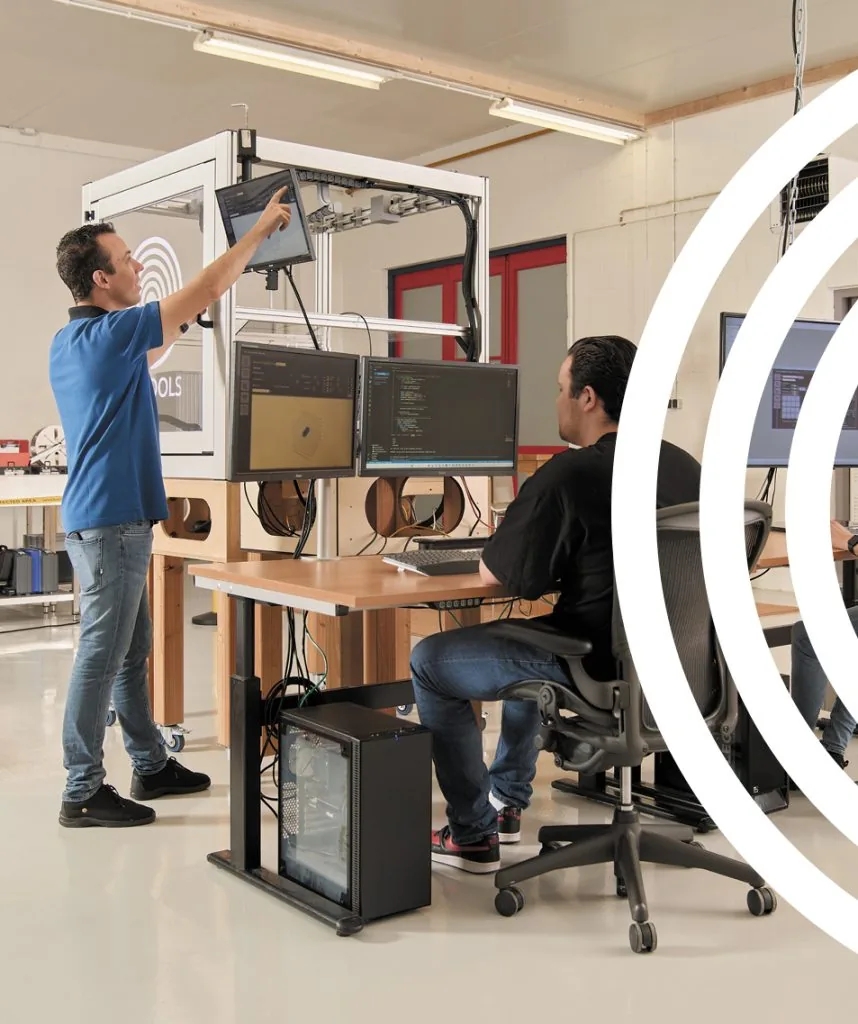

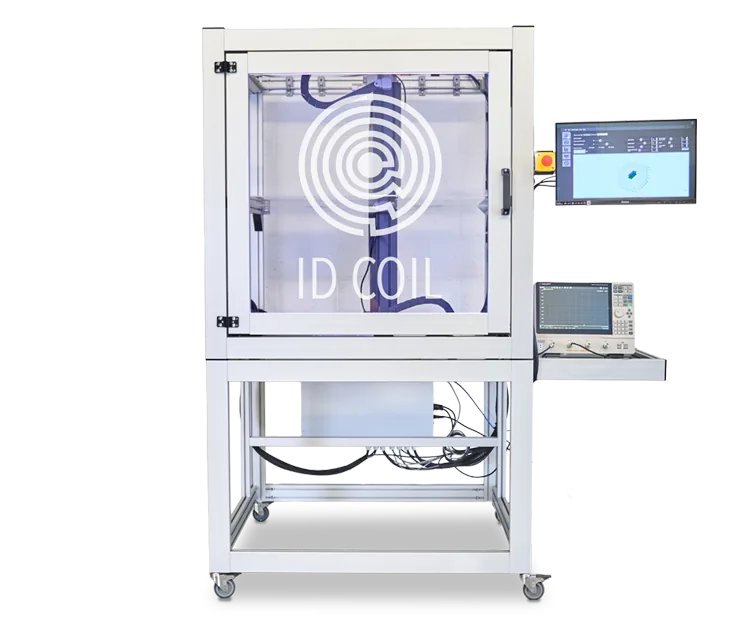

The 3D RF Near-Field Scanning Tool from ID Coil represents a game-changing step in our MRI-coil development processes.
This innovative tool provides precise insights by measuring RF signals in a 3D matrix and displaying the data in a dynamic 3D graph.
It has versatile applications: it serves both as a visualizer for RF electromagnetic fields generated by MRI coils and as a crucial instrument for EMC emission testing. By integrating this technology into our development process, we enable faster, more cost-effective, better controlled, and optimized coil designs from the earliest stages. In addition to its extensive testing capabilities during the design and development phases, the tool can also be used to test MR coils during production and repair stages.
| Testing | Test your projects during the development process whenever you want. |
|---|---|
| Measuring | The scanning tool measures RF signals as well as EMC emission. |
| Visualizing | Test results are displayed in clear 3D graphics. |

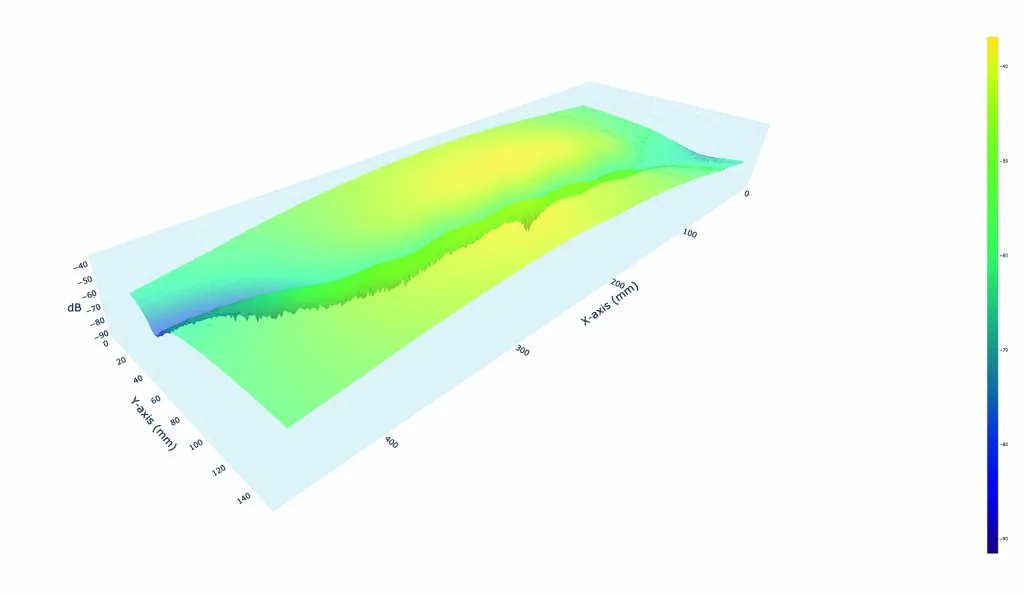

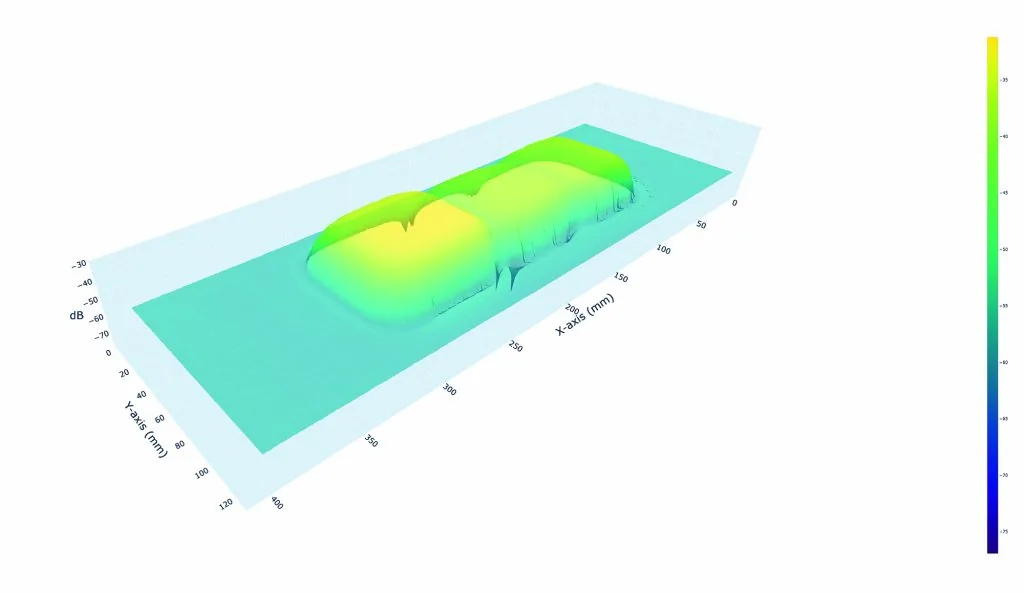

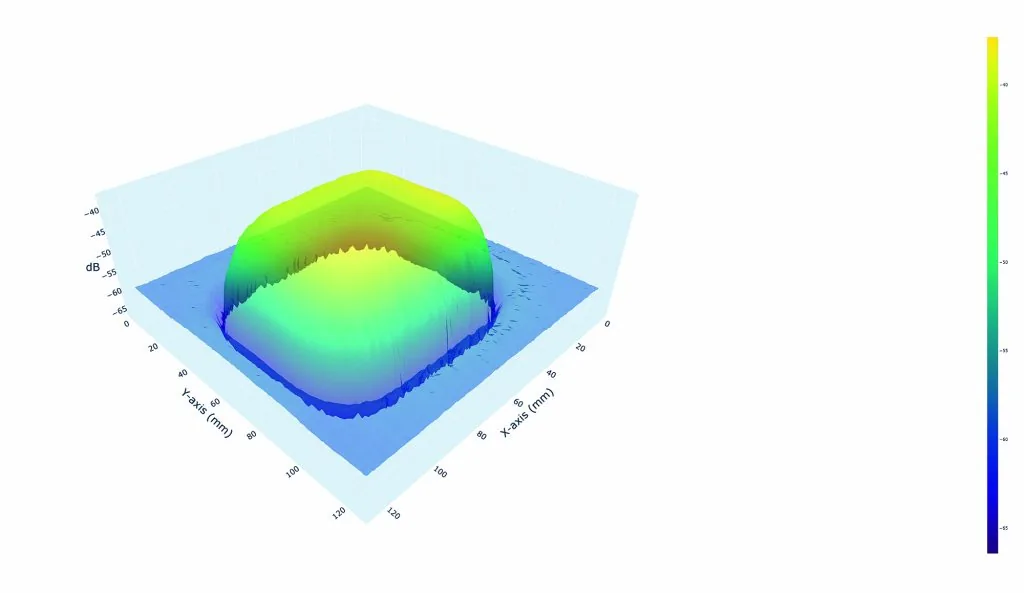

Visualize EM fields from antennas (MRI coils).

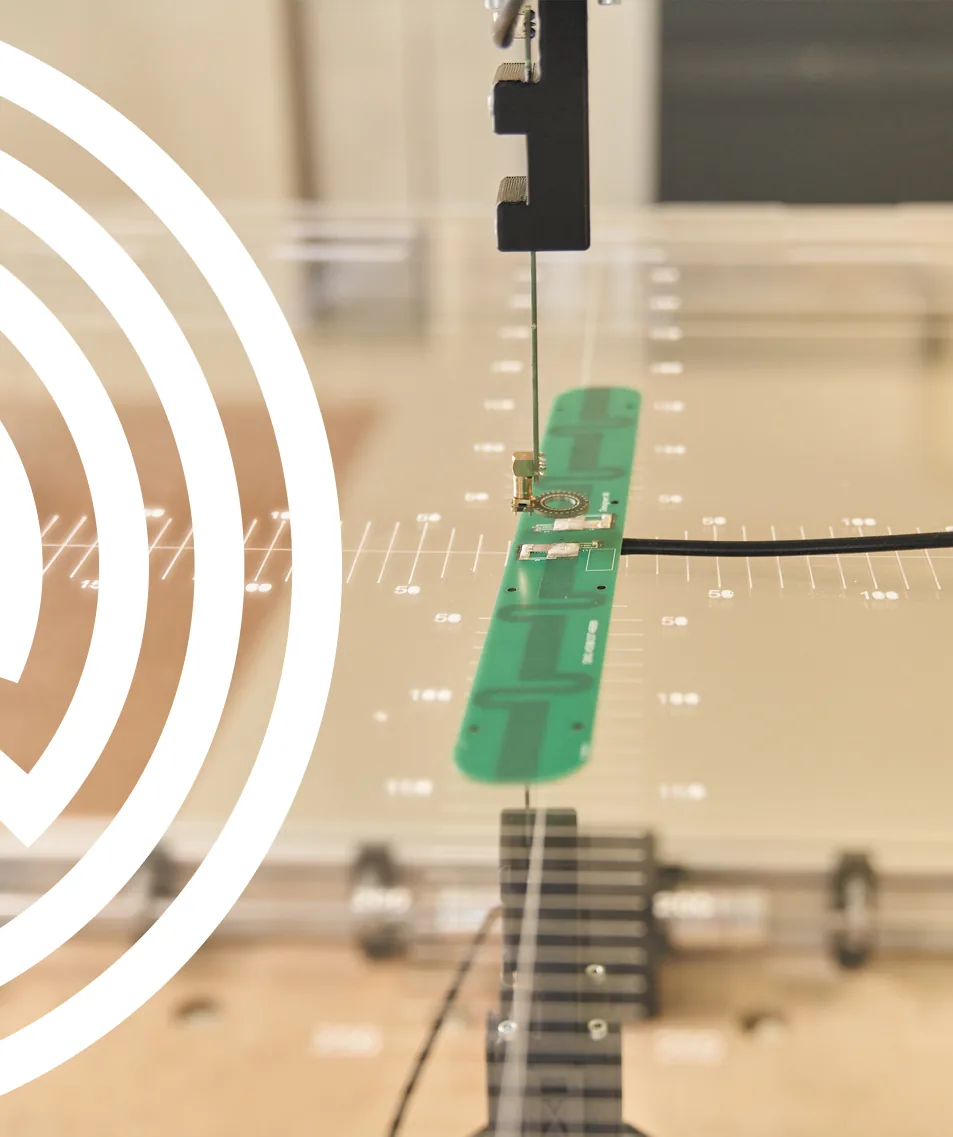

Measure EM signals in a 3D matrix.
Control your project’s development through continuous testing.
Visualize EMC emission issues.
Display results in clear 3D graphics.
Fully mobile: simply unplug and relocate. Its portability enables flexible testing across locations.
The 3D RF Scanning Tool has proven instrumental in the early testing of 7T Body Array Coil concepts, consistently yielding exceptional results. This bench-testing tool enables us to fine-tune and optimize coil designs, ensuring outstanding performance in our projects.
The first prototype and software have been released and are already being used in the development of the High-Resolution Neuro Coil. The 3D RF Scanning Tool remains in a constant state of evolution.
Our roadmap includes further tool optimization, software upgrades with new features, and support for external data editing. These steps highlight our commitment to delivering cutting-edge development, production, and repair services in the field of MRI.
It enables the fine-tuning and optimization of RF designs during the development phases
